Phishing analysis and detection

Project Overview

Phishing investigations are often repetitive and time-consuming. In this project, I utilized Tines, a Security Orchestration, Automation, and Response (SOAR) platform, to build an automated workflow. The goal was to eliminate manual reputation checks by automatically analysing suspicious URLs against threat intelligence feeds.

Technical Implementation

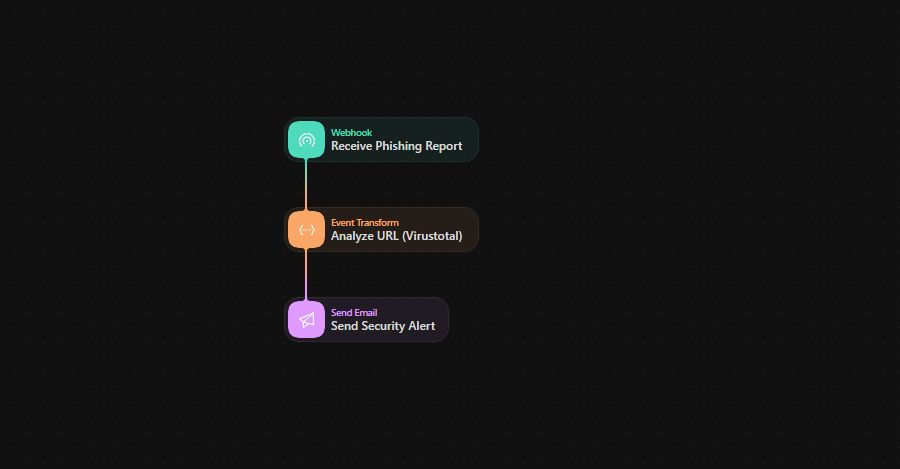

1. Workflow Architecture

I designed a linear automation story that ingests data, analyses it, and alerts the security team. The logic flow ensures that every reported URL is standardized and checked without human intervention.

2. Ingestion & Trigger

The pipeline is initiated via a Webhook trigger. In a production environment, this would receive JSON payloads from an email gateway (e.g., Microsoft 365) or a user reporting button.

Input: Raw JSON containing the suspicious URL.
Action: The event is parsed to extract the domain/IP address.

3. Threat Intelligence Enrichment

The core analysis is performed by an API integration with VirusTotal.

Mechanism: The workflow sends a GET request to the VirusTotal API.
Logic: The system retrieves the “Malicious” vote count.
- If Malicious votes > 0: The incident is flagged as High Priority.
- If Malicious votes = 0: The incident is auto-closed or flagged as Safe.

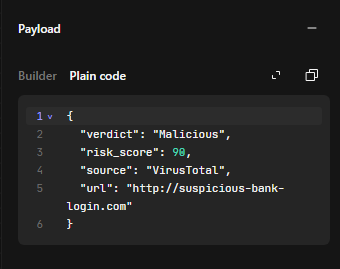

Data Payload Configuration: I configured a standardized JSON structure to mock the API response for testing, ensuring consistent variables (Verdict, Risk Score) are passed to the alerting stage.

{
  "verdict": "Malicious",
  "risk_score": 90,
  "source": "VirusTotal",
  "url": "http://suspicious-bank-login.com"
}

4. Automated Alerting

Upon detecting a threat, the workflow automatically triggers a notification action. I configured an Email Agent to send a formatted alert to the SOC team containing the Verdict and the VirusTotal Report Link. Here are the details such as subject body sender name:

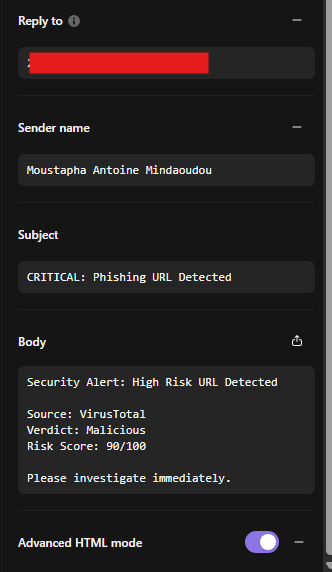

Email Template Configuration: The email body is configured with dynamic fields to insert the specific URL and Risk Score found during analysis.

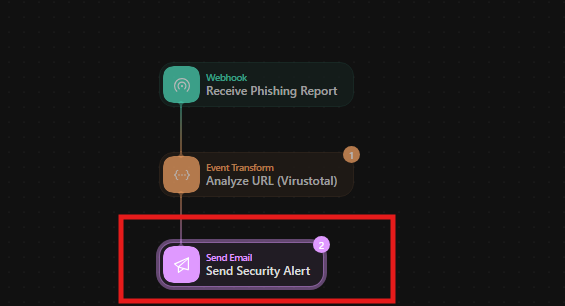

Testing the Alert Mechanism: When the “Send Security Alert” agent is triggered manually or via webhook, the system processes the payload instantly

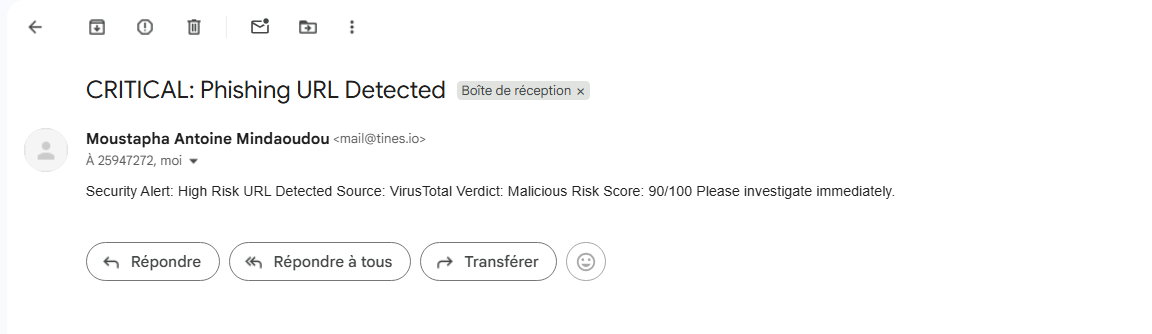

Result: The system successfully dispatches a high-priority notification to the analyst’s inbox within seconds of the trigger.

Key Outcomes

Efficiency: Reduced the Mean Time to Respond (MTTR) for URL analysis from ~5 minutes (manual) to <5 seconds (automated).
Integration: Successfully demonstrated API connectivity between an orchestration platform and external Threat Intelligence providers.
Consistency: Eliminated human error in the lookup process by standardizing the analysis procedure.
